Toray TMG10D Ultra Low Pressure Brackish Water RO Membrane | 4" x 40" | 2,650 GPD | 99.7% Rejection

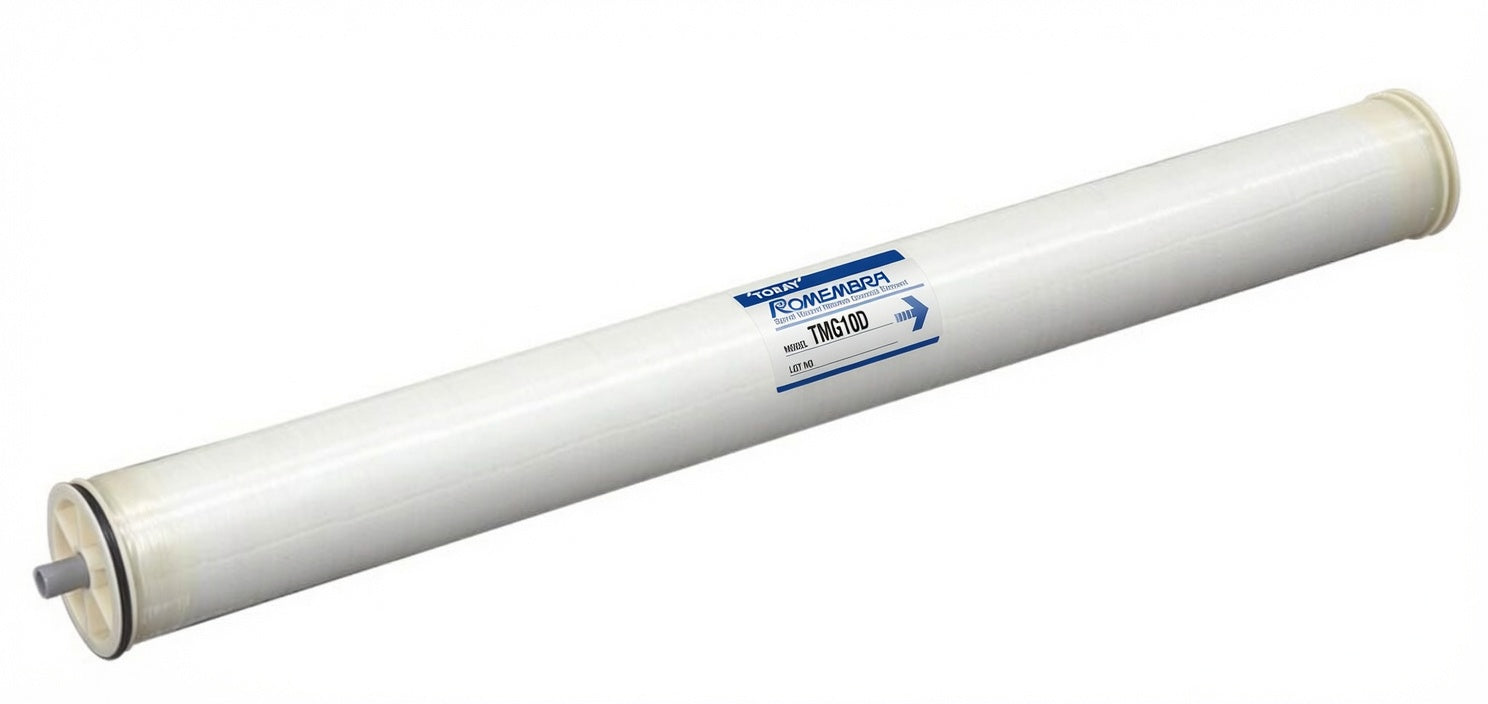

Toray TMG10D – Ultra Low Pressure Brackish Water RO Membrane Element (4040) Genuine Toray TMG(D) Series membrane designed for energy-efficient operation on low-to-moderate salinity feed water. The TMG10D delivers high permeate flow at significantly lower operating pressure than standard brackish membranes, reducing energy costs while maintaining excellent salt rejection. Key Performance Specs

• Model: TMG10D
• Size: 4" × 40" (4040)
• Active Membrane Area: 87 ft² (8 m²)
• Nominal Permeate Flow: 2,650 GPD (10.0 m³/day)
• Minimum Permeate Flow: 2,120 GPD (8.0 m³/day)
• Nominal Salt Rejection: 99.7%
• Minimum Salt Rejection: 99.5%
• Feed Spacer: 34 mil

Test Conditions
150 psi (1.03 MPa) | 77°F (25°C) | 2,000 mg/L NaCl | 15% recovery | pH 7 Operating Limits

• Maximum Operating Pressure: 600 psi (4.1 MPa)
• Maximum Feed Temperature: 113°F (45°C)
• Maximum Feed Water SDI₁₅: 5
• Free Chlorine Tolerance: < 0.1 ppm
• pH Range (Continuous): 2 – 11
• pH Range (Cleaning): 1 – 13
• Max Pressure Drop per Element: 15 psi
• Max Pressure Drop per Vessel: 50 psi

Dimensions

• Diameter: 4.0 in (101 mm)
• Length: 40 in (1,016 mm)
• Permeate Tube ID: 0.75 in (19 mm)

Applications

• Municipal drinking water
• Commercial & light industrial process water
• Water reuse / recycling systems
• Low-energy RO systems
• Brackish groundwater and surface water treatment

Membrane Type
Cross-linked fully aromatic polyamide thin-film composite (TFC) U.S.-manufactured elements (TMUS) are NSF/ANSI 61 certified for drinking water applications. Notes

• Wet-tested and preserved with sodium bisulfite solution
• Discard first hour of permeate after installation
• Always pretreat to remove free chlorine and maintain SDI ≤ 5

Ships carefully packaged. Compatible with standard 4" pressure vessels.
