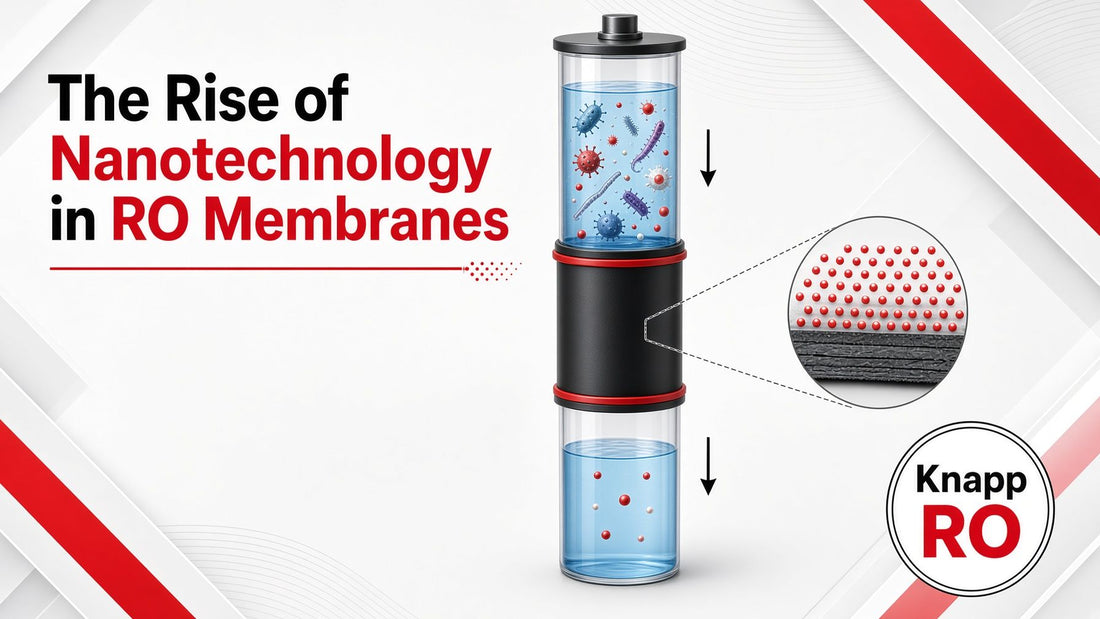

The Rise of Nanotechnology in RO Membranes: What It Means for Performance
Share
Introduction
Reverse osmosis has long relied on thin-film composite polyamide membranes to separate salts and contaminants from water. In recent years, researchers and manufacturers have increasingly turned to nanotechnology to push performance further.
By incorporating nanomaterials into the membrane structure or surface, engineers are addressing longstanding limitations such as lower flux under high rejection, fouling, and chemical degradation. This post explains what nanotechnology actually means for RO membranes, the practical benefits operators are seeing, and what it means for real-world system performance.
What Is Nanotechnology in RO Membranes?
Nanotechnology in reverse osmosis refers to the deliberate use of materials with dimensions in the nanometer range (typically 1–100 nm) to modify membrane properties. These materials can be embedded within the polyamide active layer, coated on the surface, or used to create entirely new nanocomposite structures.
Common nanomaterials explored in RO research and commercial development include:
- Metal oxide nanoparticles (titanium dioxide, silica, zeolite)
- Carbon-based materials (carbon nanotubes, graphene oxide)
- Silver or copper nanoparticles for antimicrobial effects
- Nanostructured surface coatings that alter hydrophilicity and roughness
The goal is usually to improve one or more of the following: water permeability (flux), salt rejection, resistance to organic and biological fouling, chlorine tolerance, and mechanical strength.
Key Performance Improvements
Nanotechnology-enhanced membranes aim to solve the classic trade-off in RO design: higher rejection often comes at the cost of lower flux, and higher flux can increase fouling rates.
Higher Permeability with Maintained Rejection
Some nanocomposite membranes create additional free volume or preferential water pathways within the polyamide layer. This can increase permeate flow while still rejecting dissolved salts effectively. In laboratory and pilot settings, certain nano-enhanced membranes have shown meaningful flux gains without sacrificing salt rejection.
Improved Antifouling Properties
Fouling remains one of the biggest operational costs in RO systems. Nanoparticles can increase surface hydrophilicity, reduce roughness, or create a more negatively charged surface that repels organic matter and bacteria. Some formulations also incorporate biocidal nanoparticles that inhibit biofilm formation.
Enhanced Chemical and Mechanical Durability
Certain nanomaterials improve the membrane’s resistance to oxidative attack (including residual chlorine) and help maintain structural integrity under higher operating pressures or more aggressive cleaning cycles.
Real-World Implications for Operators
For plant operators and system designers, the practical benefits of nano-enhanced membranes appear in several areas:
- Potential for higher recovery rates or lower operating pressure for the same production volume
- Longer intervals between cleanings when antifouling properties are effective
- More stable normalized permeate flow over time
- Possible reduction in pretreatment intensity in some feed waters (though good pretreatment remains essential)
It is important to note that not every “nano” claim delivers equal results in the field. Performance still depends heavily on feed water quality, system design, and operating discipline. Laboratory improvements do not always translate directly to full-scale plants.
Current Commercial Landscape
Major membrane manufacturers continue to develop and refine high-performance brackish and seawater elements that incorporate advanced materials science. While not every product is marketed explicitly as “nanotechnology,” many of the latest high-rejection and fouling-resistant membranes benefit from improved polymer chemistry and surface engineering that draw on nanoscale insights.
At KnappRO Chicago we focus on proven, high-performance FilmTec elements, including the BW30XHR series, which deliver excellent rejection and durability for demanding brackish applications. You can explore current options here: https://knapprochicago.com/collections/ro-membranes
Looking Ahead
Research continues into graphene-based membranes, aquaporin-inspired designs, and more sophisticated nanocomposite structures. Some of these approaches aim for step-change improvements in permeability and selectivity. Commercial adoption, however, moves carefully. membranes must prove long-term stability, cleanability, and cost-effectiveness under real operating conditions.
For most current systems, the best results still come from pairing high-quality conventional or advanced thin-film composite membranes with strong pretreatment, proper monitoring, and disciplined maintenance.
Key Takeaways
- Nanotechnology is being used to improve flux, rejection, and antifouling performance in RO membranes.
- Benefits can include higher productivity, reduced fouling rates, and better chemical resistance when the technology is properly implemented.
- Real-world results depend on feed water, system design, and operations, not just the membrane chemistry.
- Proven high-rejection elements such as the FilmTec BW30XHR series remain excellent choices for demanding brackish water applications.
- Continued research may bring further advances, but careful evaluation of field data is essential.
Disclaimer
This article is for educational purposes only and does not constitute professional engineering or water treatment advice. Membrane performance depends on specific feed water chemistry, system design, operating conditions, and maintenance practices. Always consult the latest manufacturer technical data sheets and a qualified water treatment professional before selecting or replacing membranes.
