Brackish Water Treatment: How BW30XHR and Similar Membranes Deliver Results
Share
Introduction
Brackish water sits between fresh water and seawater in salinity. It’s common in coastal aquifers, inland saline lakes, agricultural drainage, and some industrial wastewater streams. Treating it efficiently requires membranes that can handle elevated dissolved solids without the extreme pressures of seawater systems.
In this post, we look at how extra high-rejection brackish water membranes — particularly the FilmTec BW30XHR series — deliver strong results, and why they’re a practical choice for many municipal, industrial, and commercial applications.
What Is Brackish Water?,
Brackish water typically contains total dissolved solids (TDS) ranging from about 1,000 to 10,000 mg/L. Common dissolved ions include sodium, chloride, sulfate, calcium, magnesium, and sometimes boron or silica.
Because the salinity is lower than seawater, brackish water reverse osmosis (BWRO) systems can operate at much lower pressures (often 150–400 psi) than seawater RO. This makes them more energy-efficient while still producing high-quality permeate.
How Brackish Water RO Membranes Work
Thin-film composite (TFC) polyamide membranes are the industry standard. Water molecules pass through the semi-permeable membrane under pressure while most dissolved salts and contaminants are rejected.
Key performance metrics for brackish membranes include:
- Salt rejection (typically 99.0–99.7%+ for high-rejection models)
- Permeate flux (gallons per square foot per day)
- Fouling resistance
- Operating pressure range
- Compatibility with cleaning chemicals

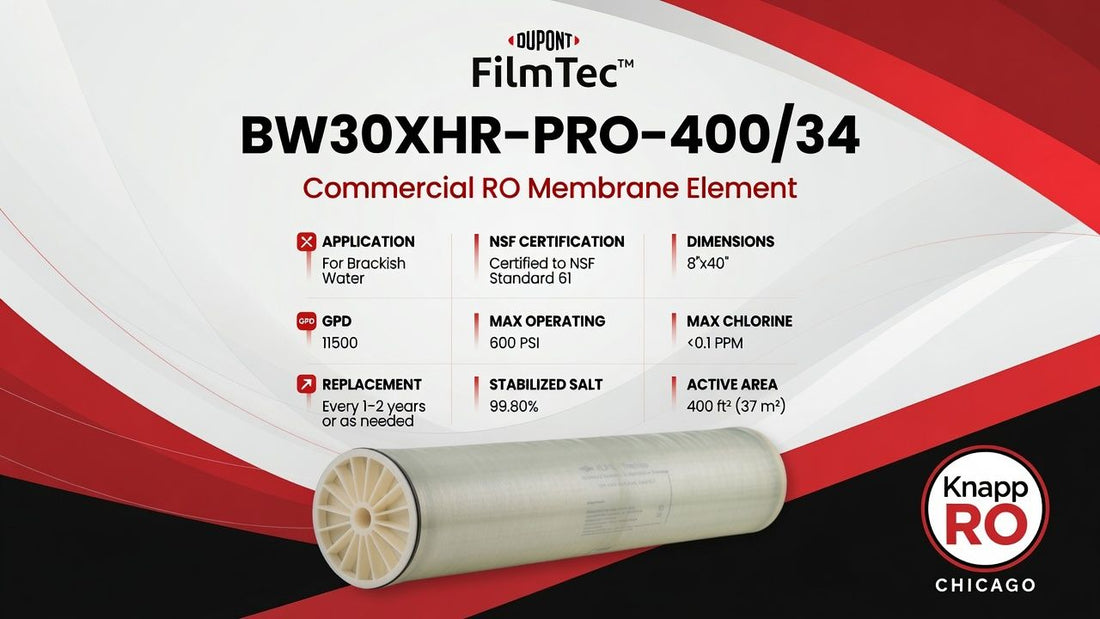

DuPont FilmTec BW30XHR
The DuPont FilmTec BW30XHR (Extra High Rejection) membrane is designed specifically for demanding brackish water applications. It offers:
- Very high NaCl rejection (typically >99.5% under standard test conditions)
- Strong performance on monovalent and divalent ions
- Good boron rejection relative to many standard BWRO membranes
- Improved fouling resistance through advanced surface chemistry
- Compatibility with low-fouling feed spacers
These characteristics make the BW30XHR a strong option when permeate quality is critical or when the feed water is more challenging than average brackish sources.
For complete technical details — including flow rates, minimum and stabilized rejection values, operating limits, and recommended conditions — you can download the official FilmTec BW30XHR Product Data Sheets here
Real-World Advantages
High-rejection brackish membranes like the BW30XHR help operators:
- Meet strict permeate quality targets with fewer stages or lower recovery adjustments
- Reduce the load on post-treatment processes
- Maintain stable performance over longer periods when pretreatment is solid
- Lower overall energy use compared with seawater systems treating similar volumes
System Design Considerations
Successful brackish water RO still depends on good engineering:
- Effective pretreatment (multimedia filtration, ultrafiltration, antiscalant dosing, pH adjustment, and cartridge filtration)
- Proper recovery rate and staging
- Regular monitoring of normalized permeate flow, differential pressure, and salt passage
- Timely clean-in-place procedures before fouling becomes irreversible
When membranes do need replacement, upgrading to a high-rejection element such as the BW30XHR can improve both water quality and system reliability.
KnappRO Support
At KnappRO Chicago we stock FilmTec BW30XHR elements and other high-performance brackish water membranes. You can browse current availability here: https://knapprochicago.com/collections/brackish-water-filters
Key Takeaways
- Brackish water RO operates at lower pressure than seawater RO, making it more energy-efficient.
- Extra high-rejection membranes such as the FilmTec BW30XHR deliver superior salt and contaminant rejection.
- Good pretreatment and monitoring remain essential for long membrane life.
- Upgrading to high-rejection elements can improve permeate quality and system stability.
- Full technical specifications are available in the official FilmTec BW30XHR Product Data Sheet.
Disclaimer
This article is for educational purposes only and does not constitute professional engineering or water treatment advice. Membrane performance depends on specific feed water chemistry, system design, operating conditions, and maintenance. Always consult the latest manufacturer technical data sheets and a qualified water treatment professional before selecting or replacing membranes.
